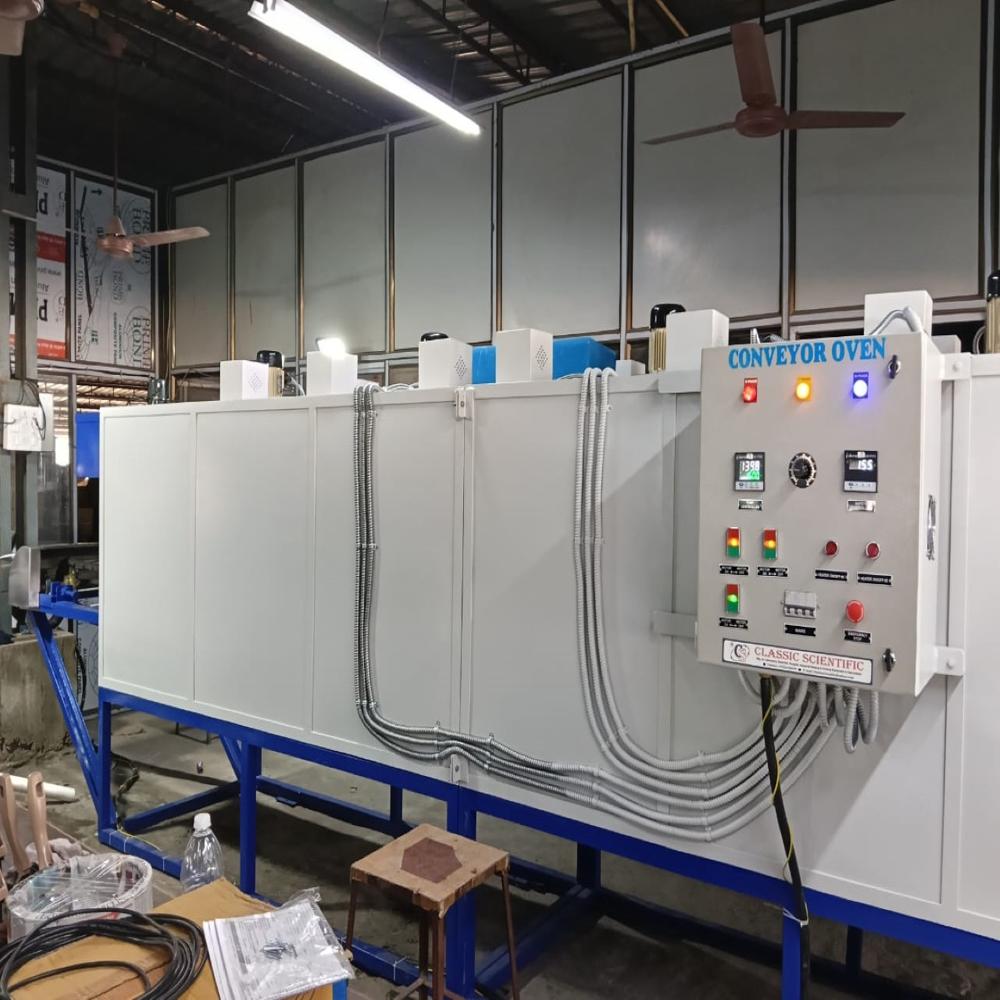

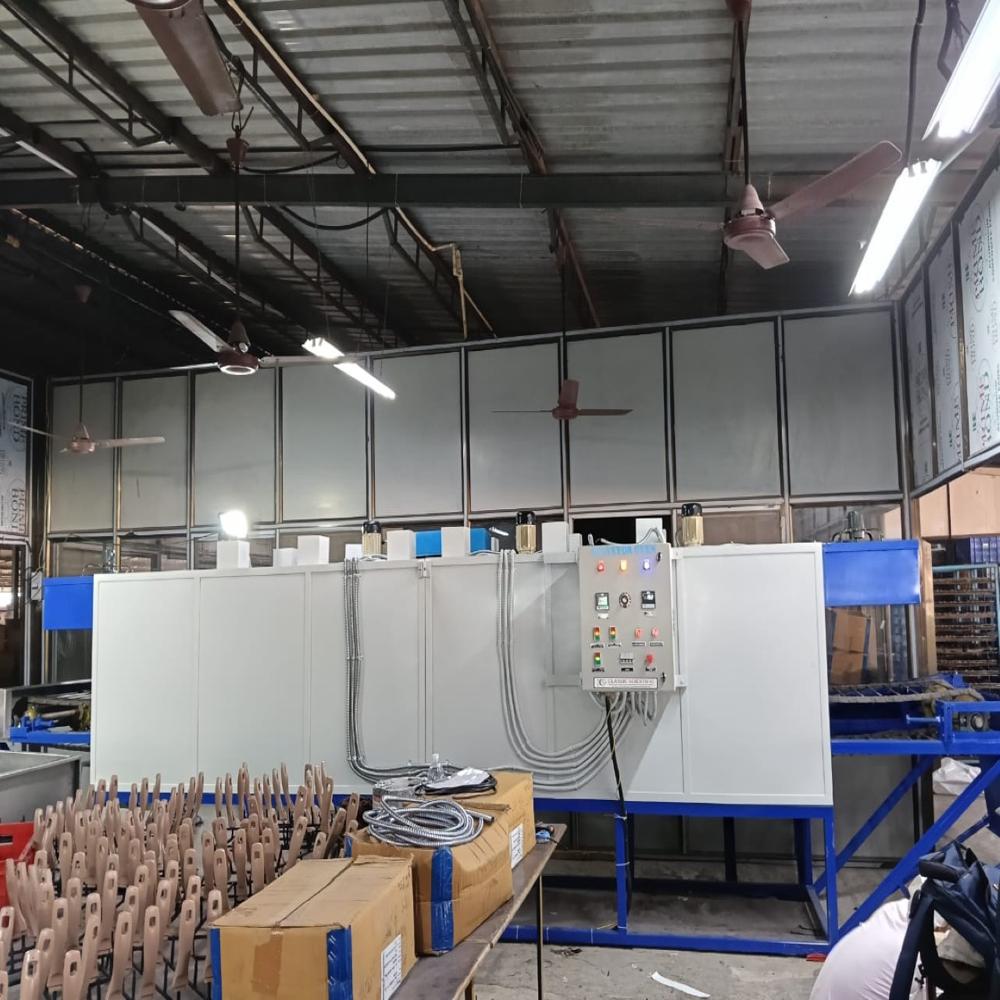

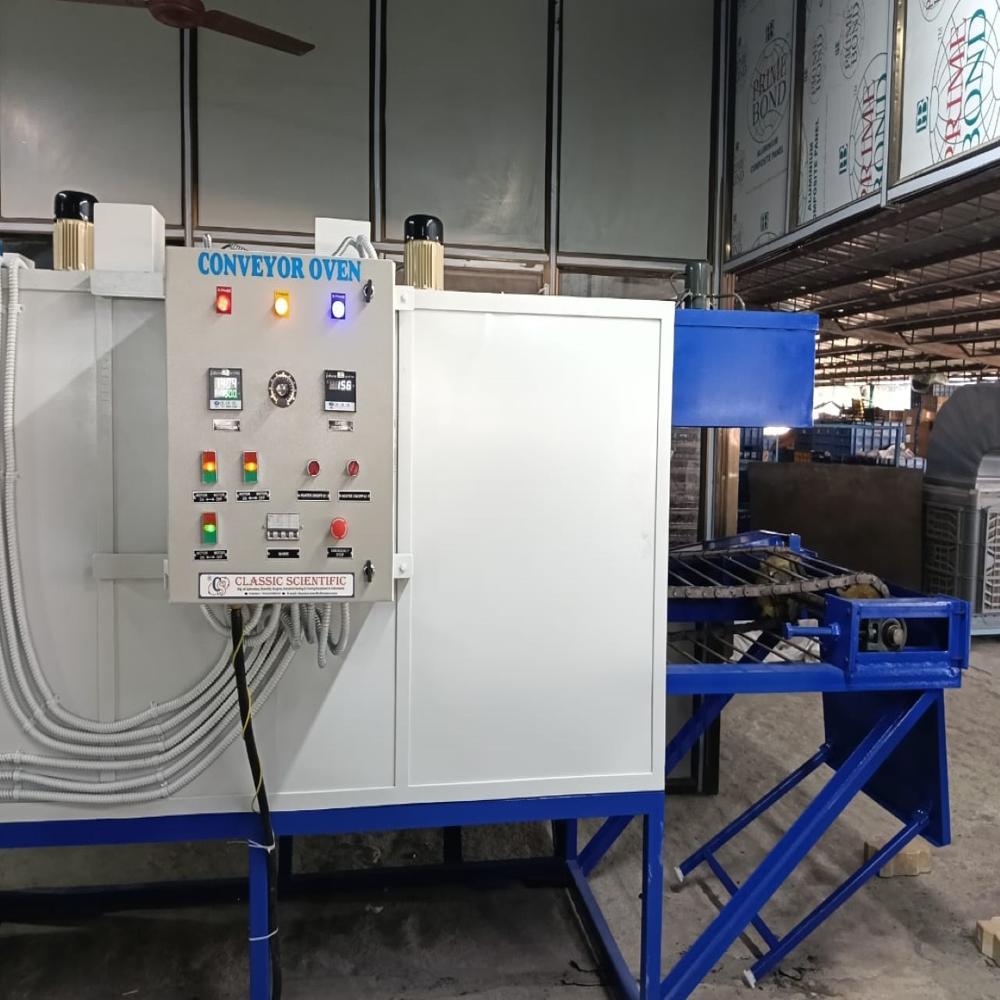

CONVEYOR OVEN

CONVEYOR OVEN Price And Quantity

• Price 600000.0 INR/Unit
• Minimum Order Quantity 1 Unit

CONVEYOR OVEN Product Specifications

• Material MS/SS Structural Frame with MS/SS Conveyor Mesh
• Control Type Digital PID Control Panel
• Shape Rectangular Box with Belt Conveyor
• Type Conveyor Oven
• Power Supply Three Phase Electric Supply
• Dimension (L*W*H) Customizable as per requirement (Standard size approx. 4000mm x 1200mm x 1800mm)
• Heating Capacity Adjustable, typically 300C standard max
• Speed Range Variable conveyor speed: 0.5 to 5 m/min
• Warranty 1
• Application Drying
• Features Adjustable conveyor speed, digital PID controller, insulated doors, low heat loss, emergency stop, uniform heat distribution, robust construction
• Equipment Materials Mild Steel/ Stainless Steel Body with Insulation Panels
• Display Type Digital Temperature and Process Display
• Power 9 kW to 36 kW, depending on size/configuration
• Capacity (Ltr) 500 Kilogram(Kg)
• Voltage 415 V AC, 3 Phase, 50 Hz
• Accuracy 2C with digital temperature controller
• Equipment Type Industrial Conveyorized Oven
• Temperature Resistance Up to 300C to 450C operating range

• Door Design Manual or automatic sliding/hinged doors for inspection/maintenance
• Conveyor Type SS Mesh Belt/Slat/Chain Conveyor
• Air Circulation High-efficiency circulation blower for uniform heating
• Heating Method Electric or LPG/NG Gas Fired Heaters on request
• Install Location Indoor, ventilated industrial premises
• Insulation Thickness 100 to 150 mm ceramic/mineral wool insulation
• Protection Over-temperature and phase failure protection system
• Chamber Material Corrosion-resistant powder coated/painted finishing
• Conveyor Width 300 mm, 450 mm, 600 mm and custom sizes
• Exhaust System Built-in exhaust stack for fume extraction
• Optional Accessories Data logger, additional temperature zones, timer, auto shutdown system
